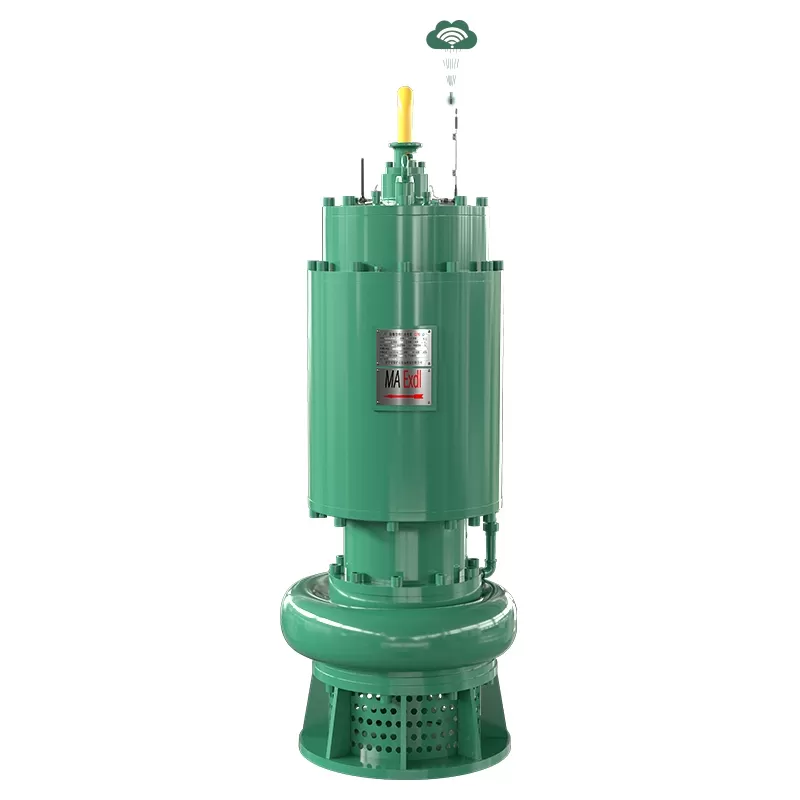

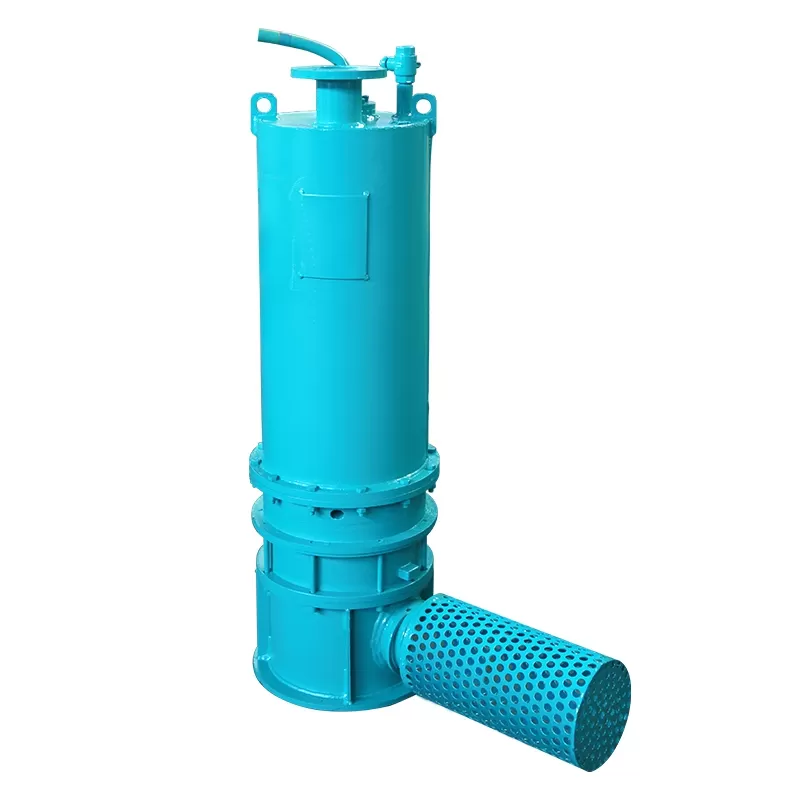

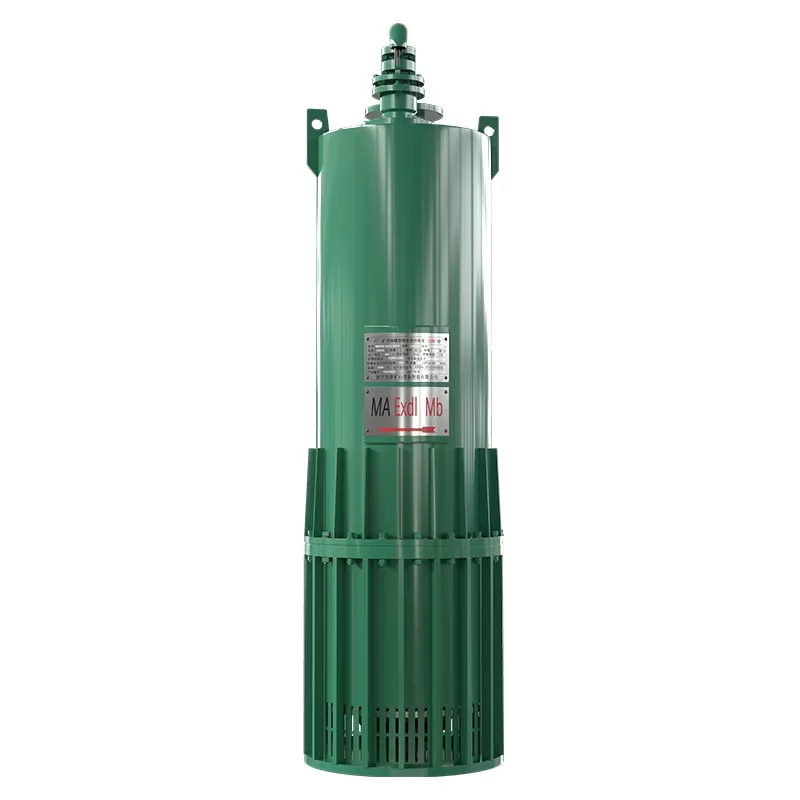

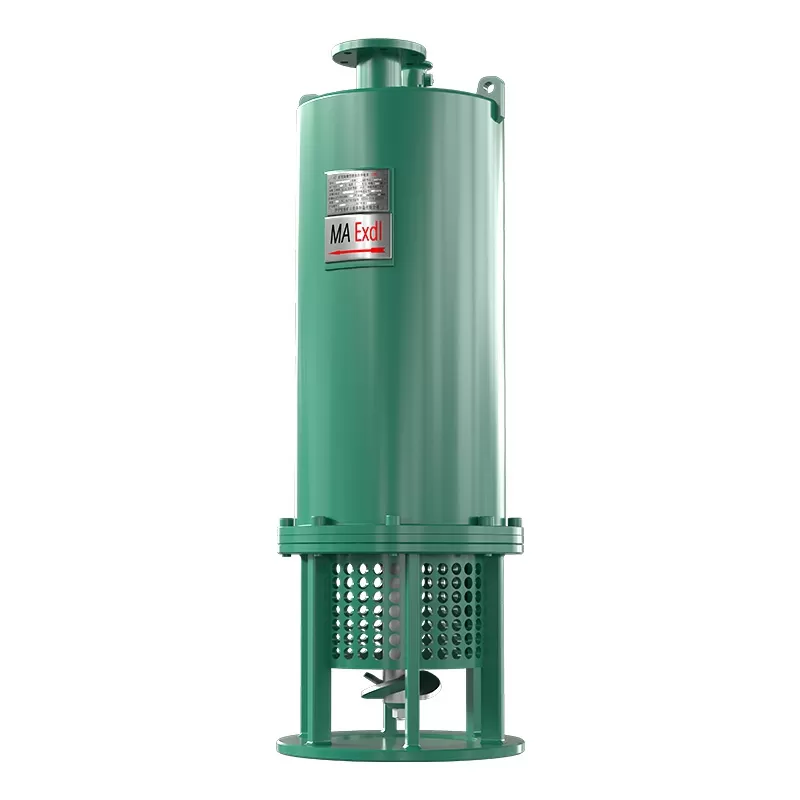

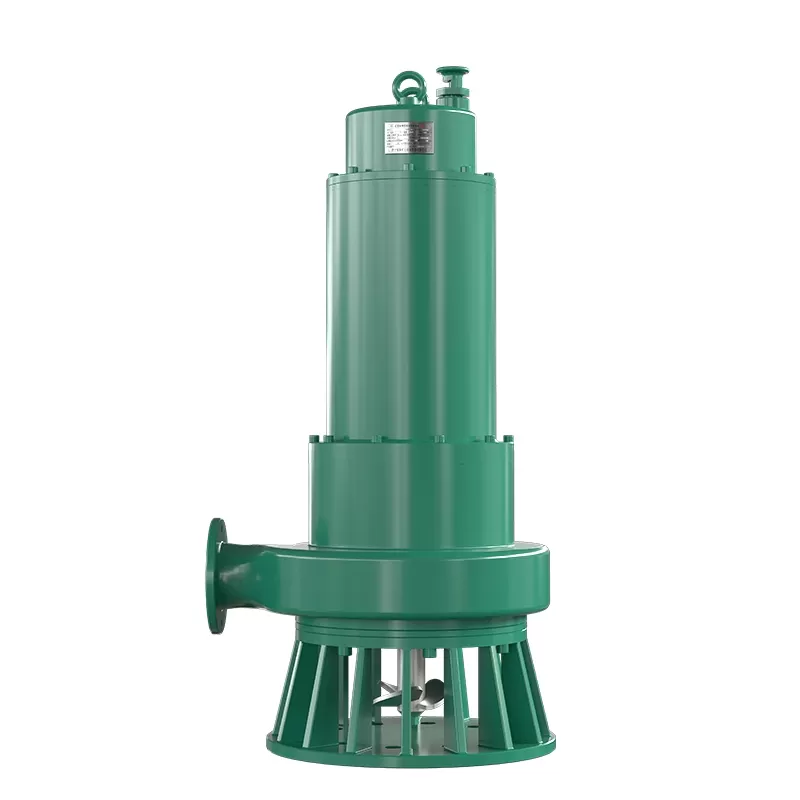

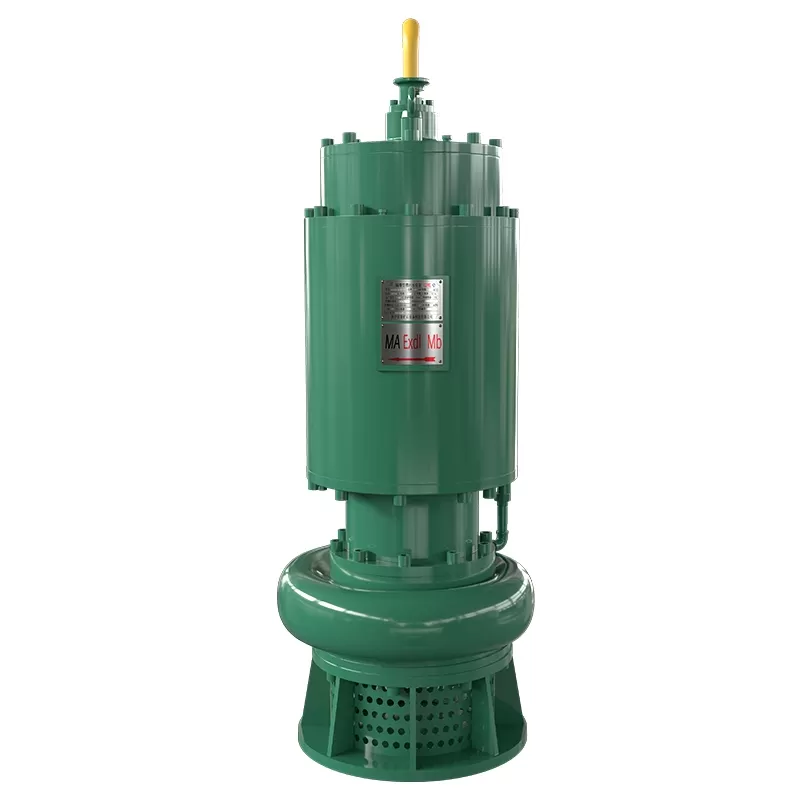

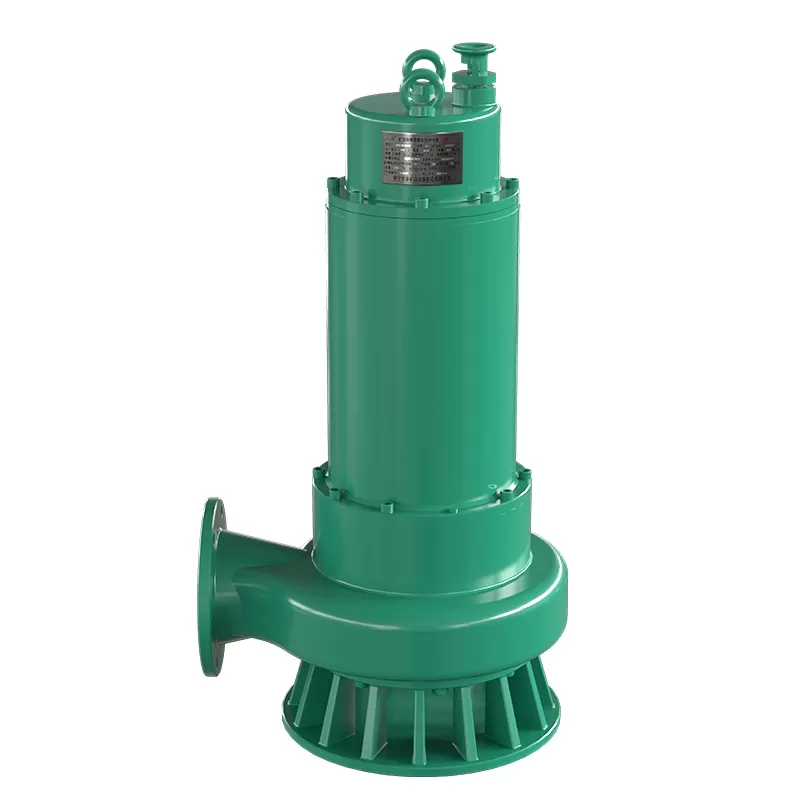

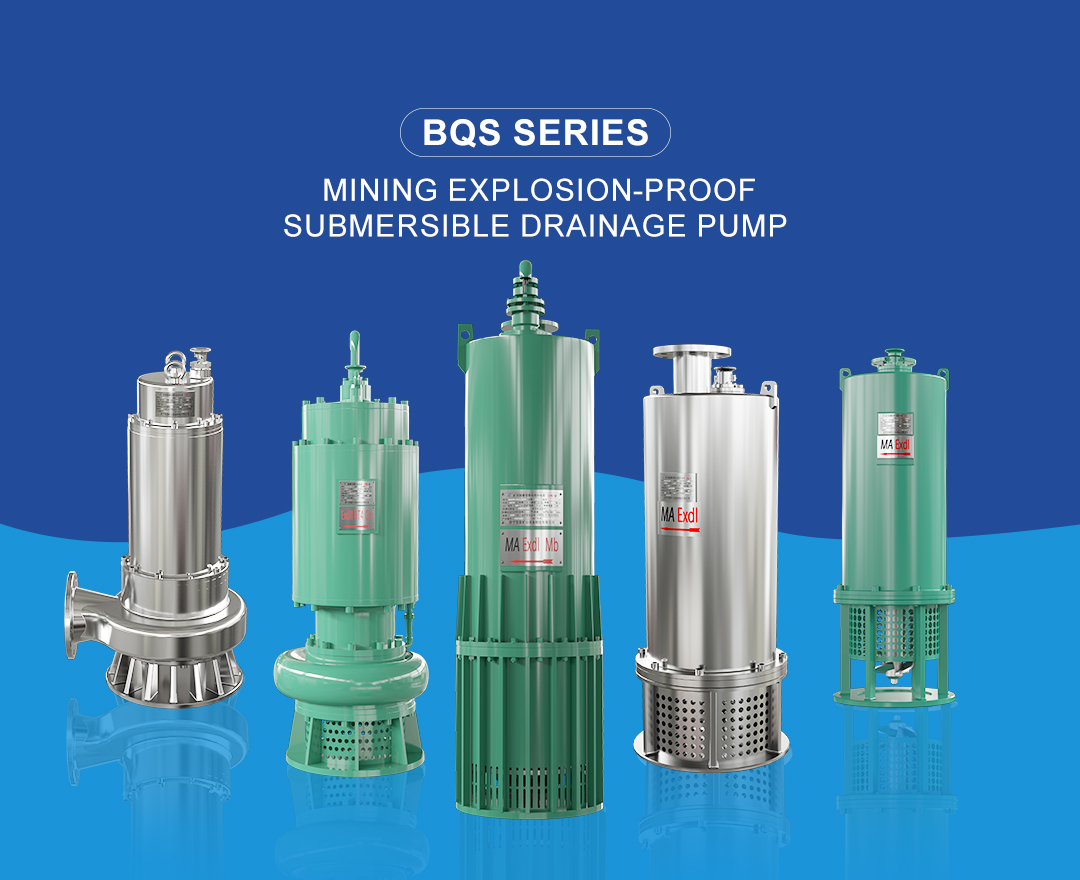

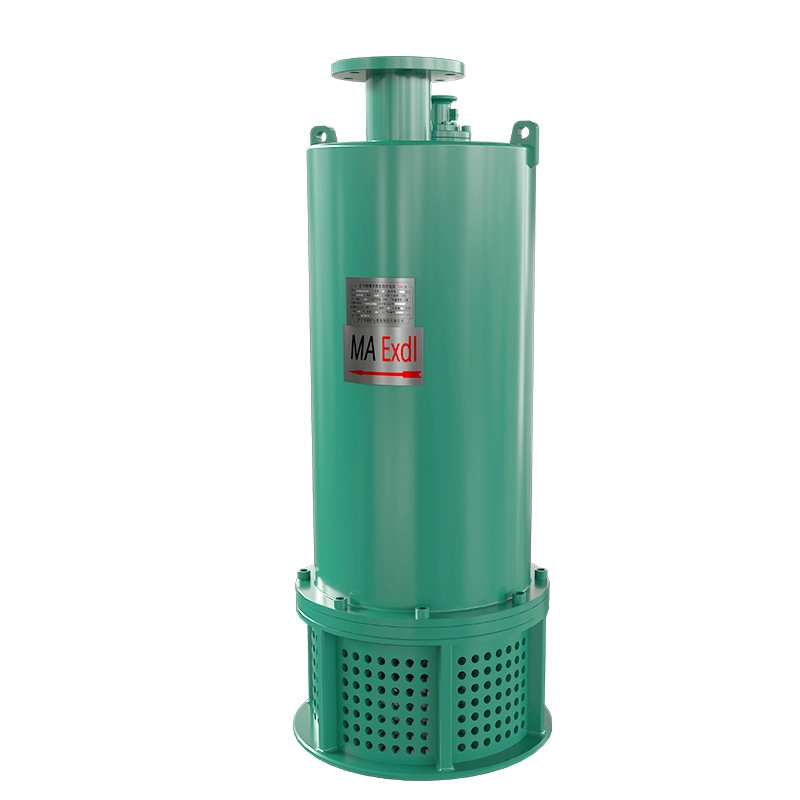

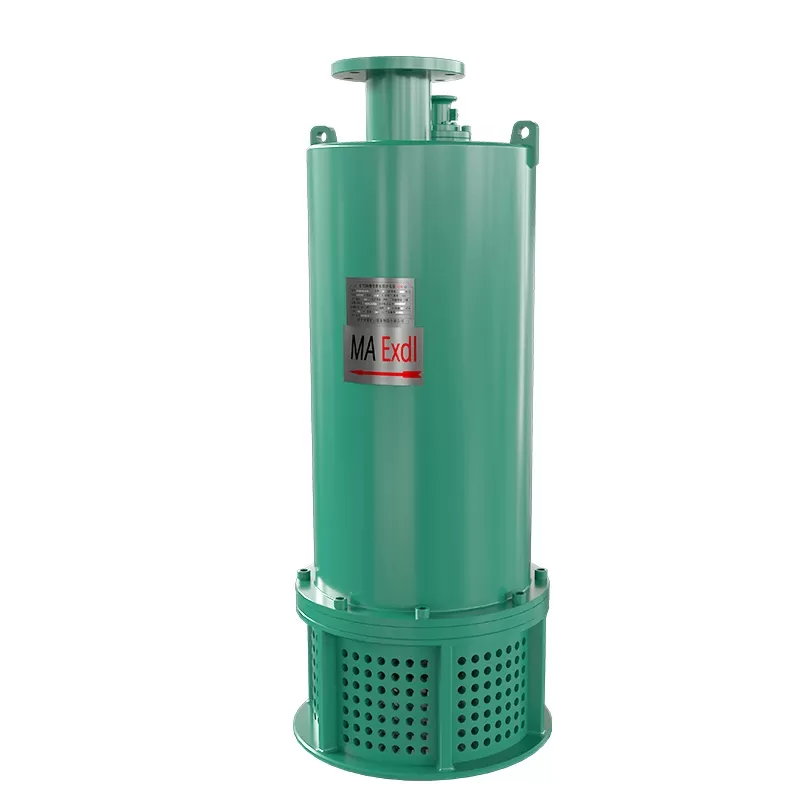

It is applicable to dangerous sites which contain methane (commonly known as gas) and coal-dust explosion, capable of handling sewerage which contains a mixture of insoluble solid contents such as sediment, coal slime, cinders, fibrous material, etc. it is also applicable for transporting rain water and sewage containing solid particles at constructions, hospitals, residential areas, municipal projects, roads, factory sewage, etc. Fully range of models, power range is 2.2kw-315kw,flow range is 10m³/h-2500m³/h,head range is 7m-700m,all products are designed with full head, no overload throughout whole head.
Category

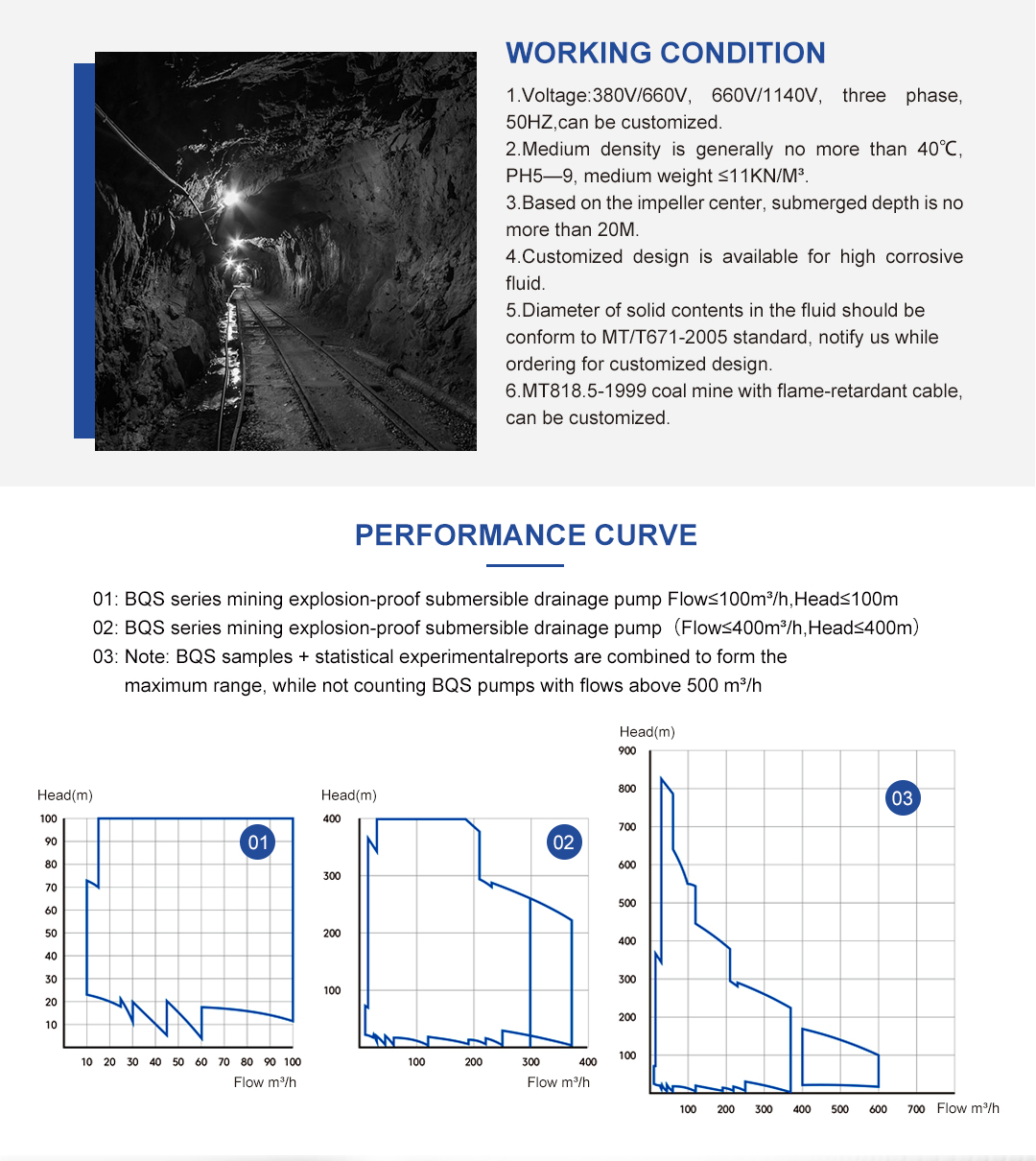

Working Condition

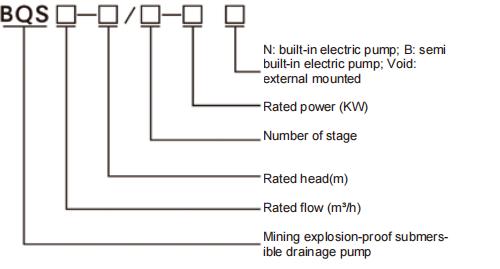

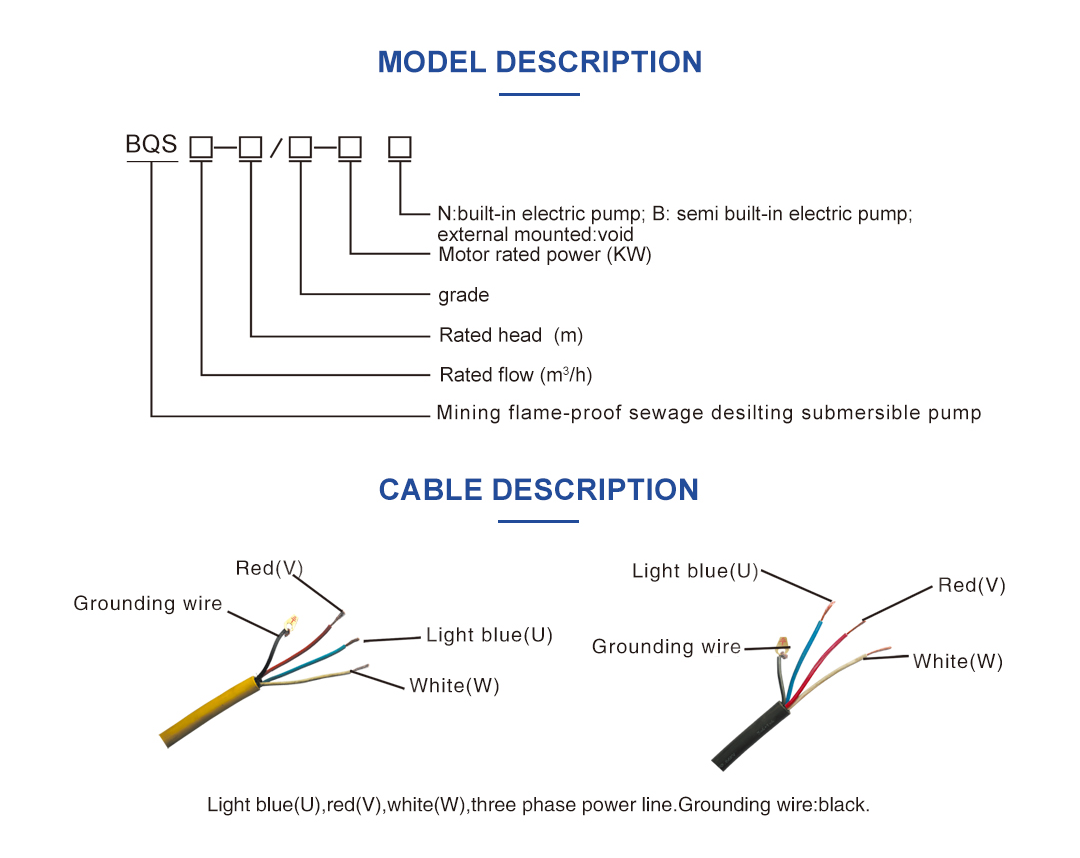

Model Description

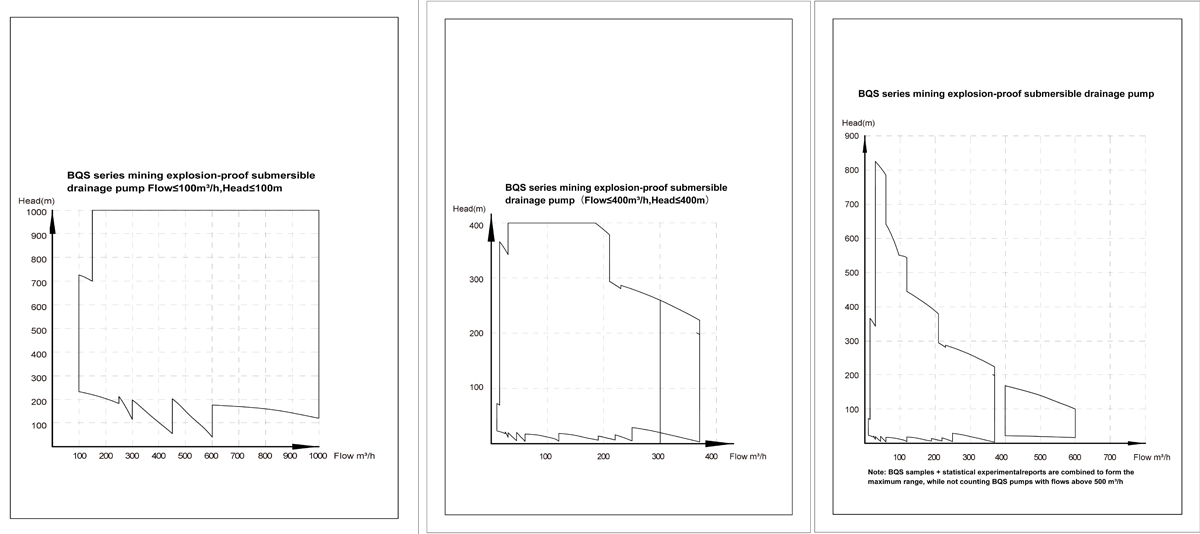

Performance Curve
Technical parameters
1. Voltage options include 380V/660V and 660V/1140V, three-phase, 50Hz, and can be customized according to specific requirements.
2. The medium density typically does not exceed 40℃, with a pH range of 5 to 9, and a maximum medium weight of ≤11KN/M³.
3. The submerged depth, measured from the impeller center, should not exceed 20 meters.
4. Customized designs are available to accommodate highly corrosive fluids.
5. The diameter of solid contents in the fluid should adhere to the MT/T671-2005 standard. Please specify if a customized design is needed when placing an order.
6. The pump is compatible with MT818.5-1999 coal mines with flame-retardant cable and can be customized accordingly.
